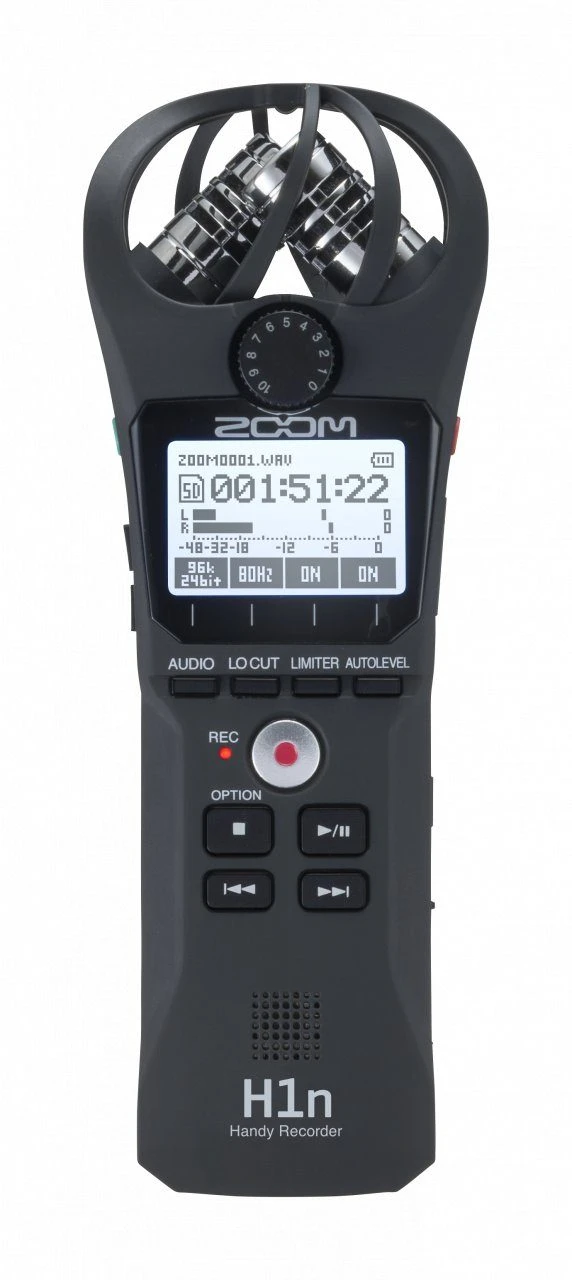

H1n Handy Recorder

About this product

The Zoom H1n is an excellent field recorder which makes a great partner to your bat detector. The H1n has its own X/Y 90˚ microphones which capture high quality stereo sound, supporting up to 24-bit audio sampling rates of 44.1, 48 or 96 kHz in WAV format or a variety of MP3 formats. The one-touch button controls make it simple to configure your settings and operate the recorder, and its monochromatic 1.25″ LCD display is easy to read, even in the brightest lighting conditions. A low-cut filter helps to eliminate unwanted low frequency sounds from recordings such as wind. You can also set the H1n to auto-record, pre-record, and self-time to ensure that you do not miss that vital moment.  The H1n can be easily connected to a DSLR or video camera and it features a tone generator which can be used to provide a clear mark for syncing recorded audio and video in post porcessing.

It has a 1/8” stereo mic/line input which can provide plug-in power (2.5 volts) to an external microphone. Headphones can be attached via another 1/8” socket with a dedicated volume control. The H1n also has its own built-in speaker to enable you to listen to your recordings in the field. Its USB port provides a digital output of the stereo mix and allows data to be sent from your computer, enabling the H1n to be utilised as a USB microphone as well as a microSD card reader.

It is powered by x2 AAA batteries (included) which offer up to 10 hours of recording time. The H1n comes supplied with a Quick Start Guide to help you get recording quickly and easily, as well as free copies of the Steinberg’s Cubase LE music production software and WaveLab LE audio editing software.

Specification

Simultaneous playback tracks: 2
Simultaneous recording tracks: 2
Functions: Lo-cut Filter, Limiter,Test Tone,Slate-Tone,Voice Emphasize Filter, Playback Position Skipping, Playback Speed Control, A-B Repeat, Auto REC Level, Marker, Auto-Record, Pre- Record, Self-Timer, Overdubbing
Recording Formats: WAV: 44.1 kHz/16-bit, 48 kHz/16-bit, 48 kHz/24-bit, 96kHz/24-bit
A/D conversion: 24-bit, 128x oversampling
D/A conversion: 24-bit, 128x oversampling
Signal processing: 32-bit
Recording media: microSD/microSDHC cards (Class 4 or higher, up to 32GB)
Display: 1.25” monochrome LCD (96 x 64)
Built-in Stereo Mic: Unidirectional condenser, 90° XY stereo format, Gain: -∞ dB to +39 dB,
Maximum sound pressure level: 120 dB SPL

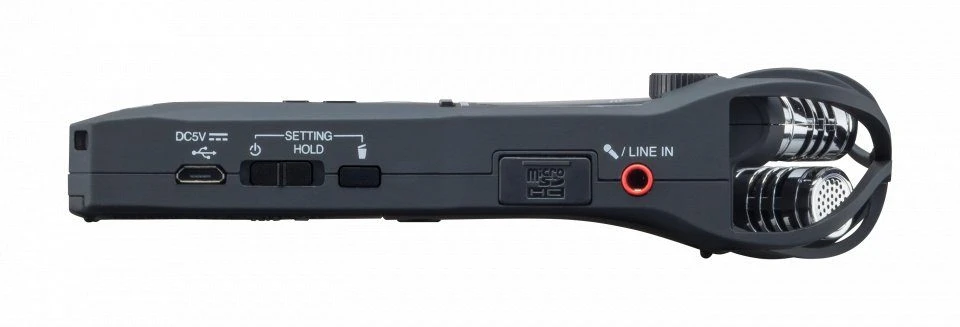

Inputs: 1/8″ stereo phone jack, Rated input level: -∞ dB to -39 dBm,
Input impedance: 2 kΩ, Plug-in power supported (2.5 V)
Built-in Speaker Built-in 500 mW mono speaker
Output impedance: 8 Ω

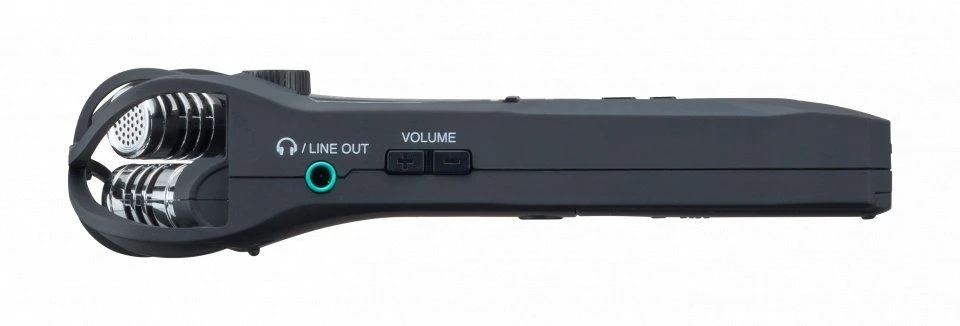

Outputs: 1/8″ stereo phone jack (combined line/headphones)
Rated output level: 20 mW + 20 mW into 32Ω load
Output impedance: 10 kΩ or more
USB: Micro USB port
Mass storage class operation: USB 2.0 high speed
Audio interface operation: 44.1/48kHz sampling rate, 16-bit depth, 2-in/2-out,
Transfer method: asynchronous

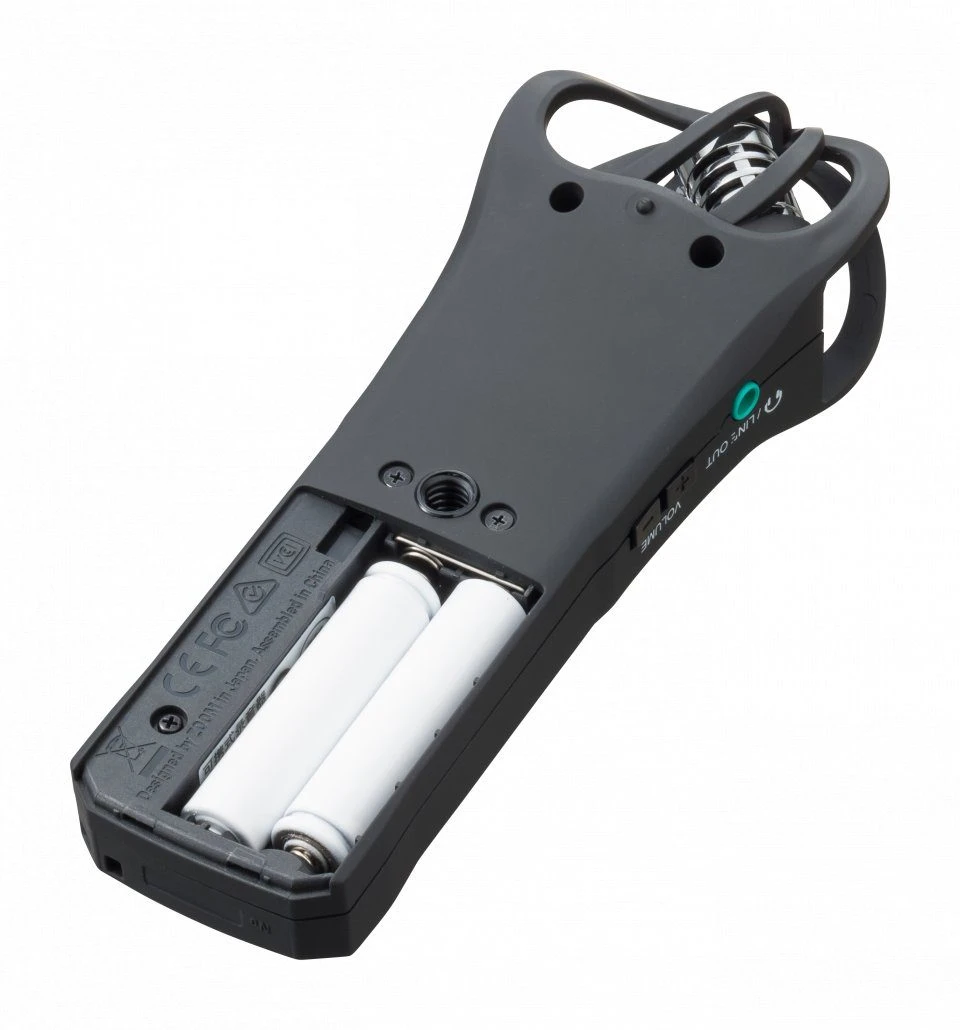

Power requirements: 2 AAA batteries (alkaline, nickel-metal hydride rechargeable or lithium), AC adapter (ZOOM AD-17): DC 5V/1A (not included), USB bus power
Battery life (alkaline batteries): Approximately 10 hours (continuous recording time using built-in mic, 44.1 kHz/16-bit)
Dimensions: 50 mm (W) × 137.5 mm (D) × 32 mm (H) , 1.9” (W) x 5.4” (D) x 1.2” (H)
Weight: 60g (without batteries)
